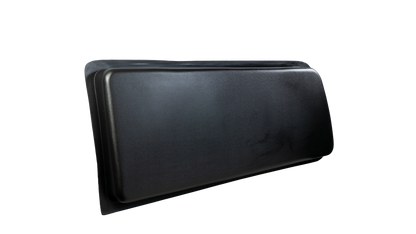

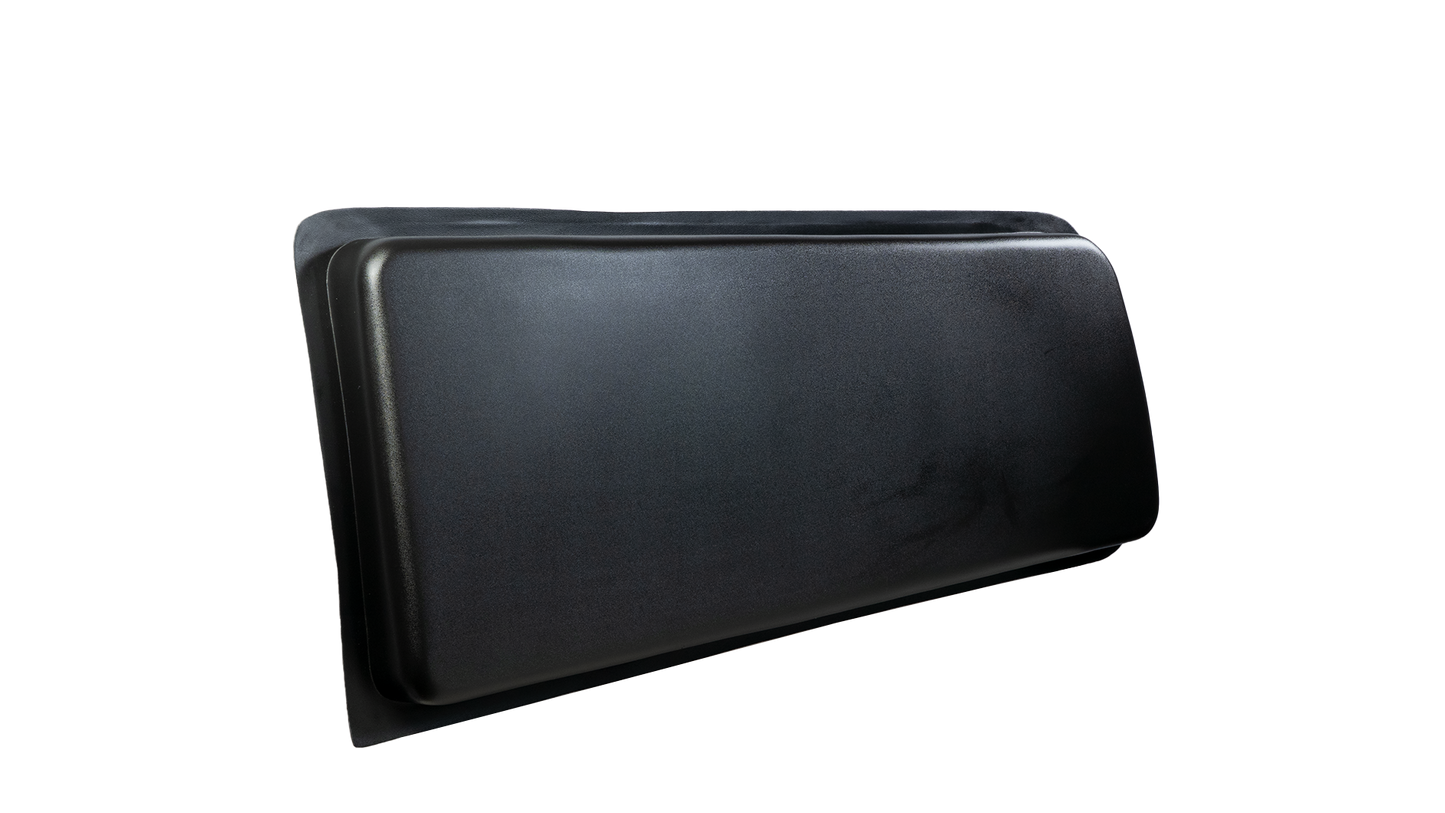

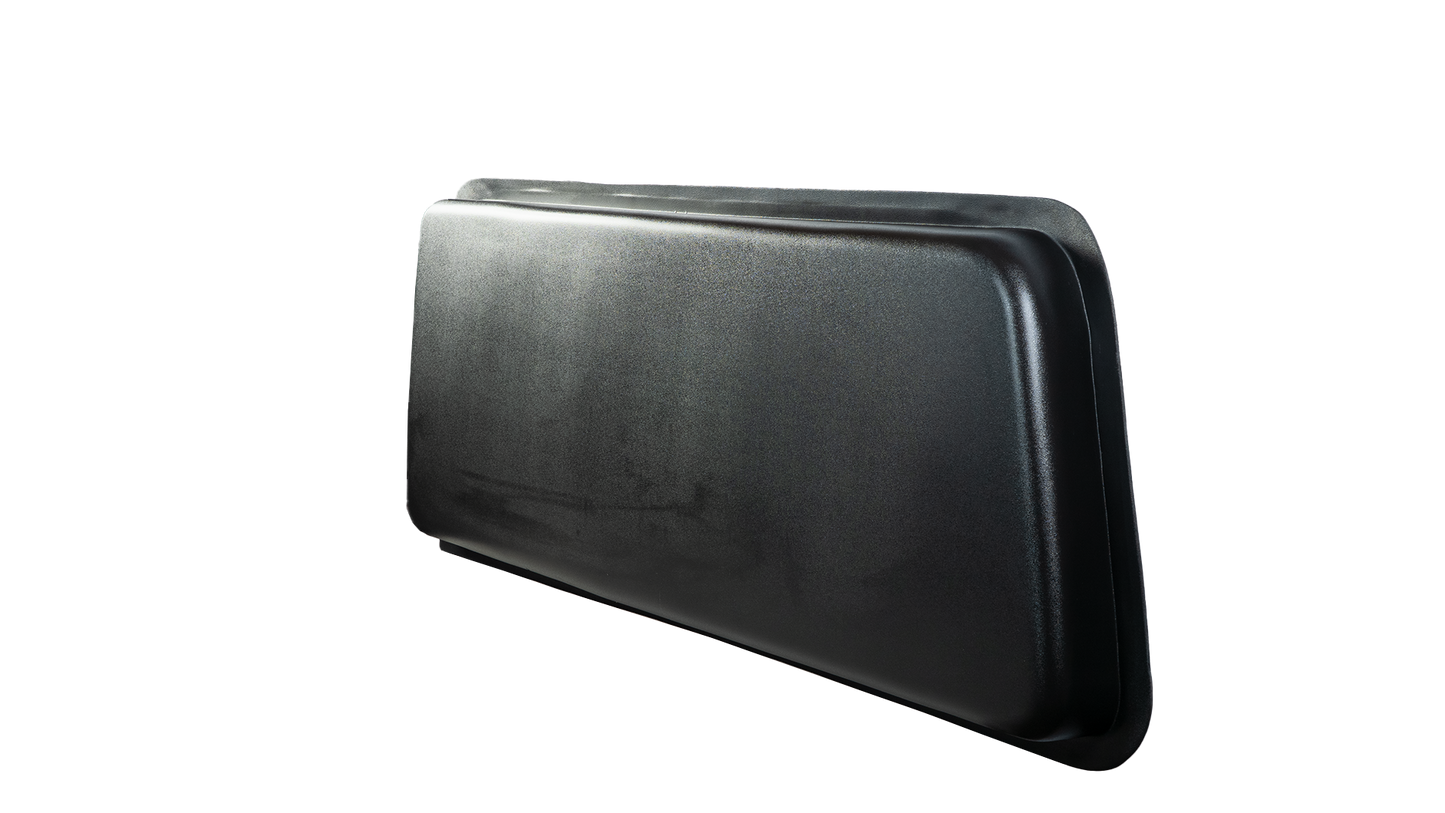

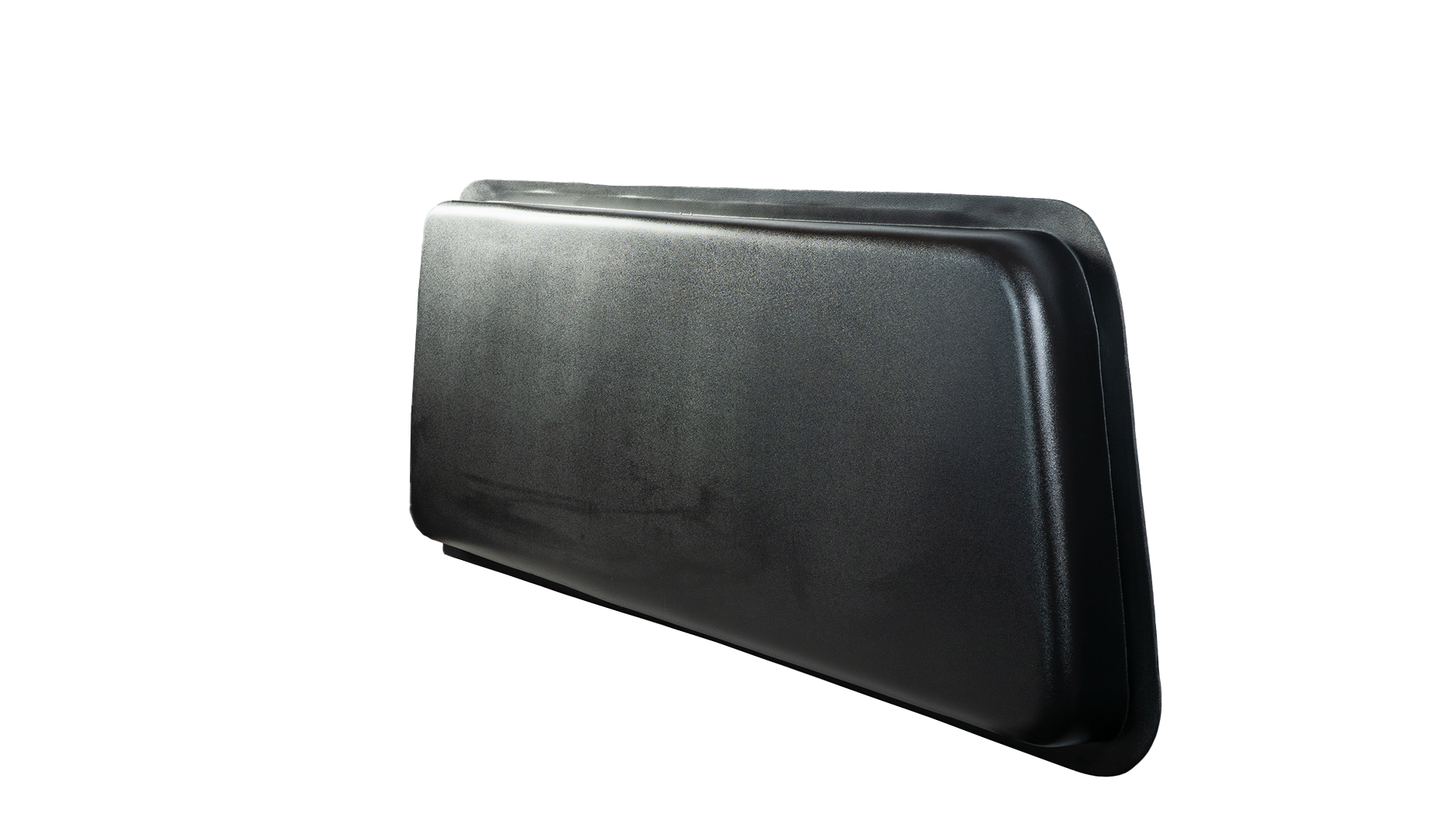

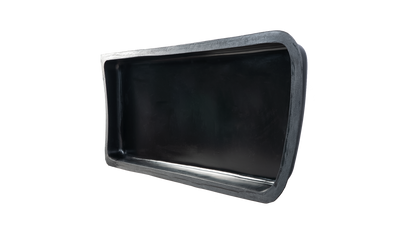

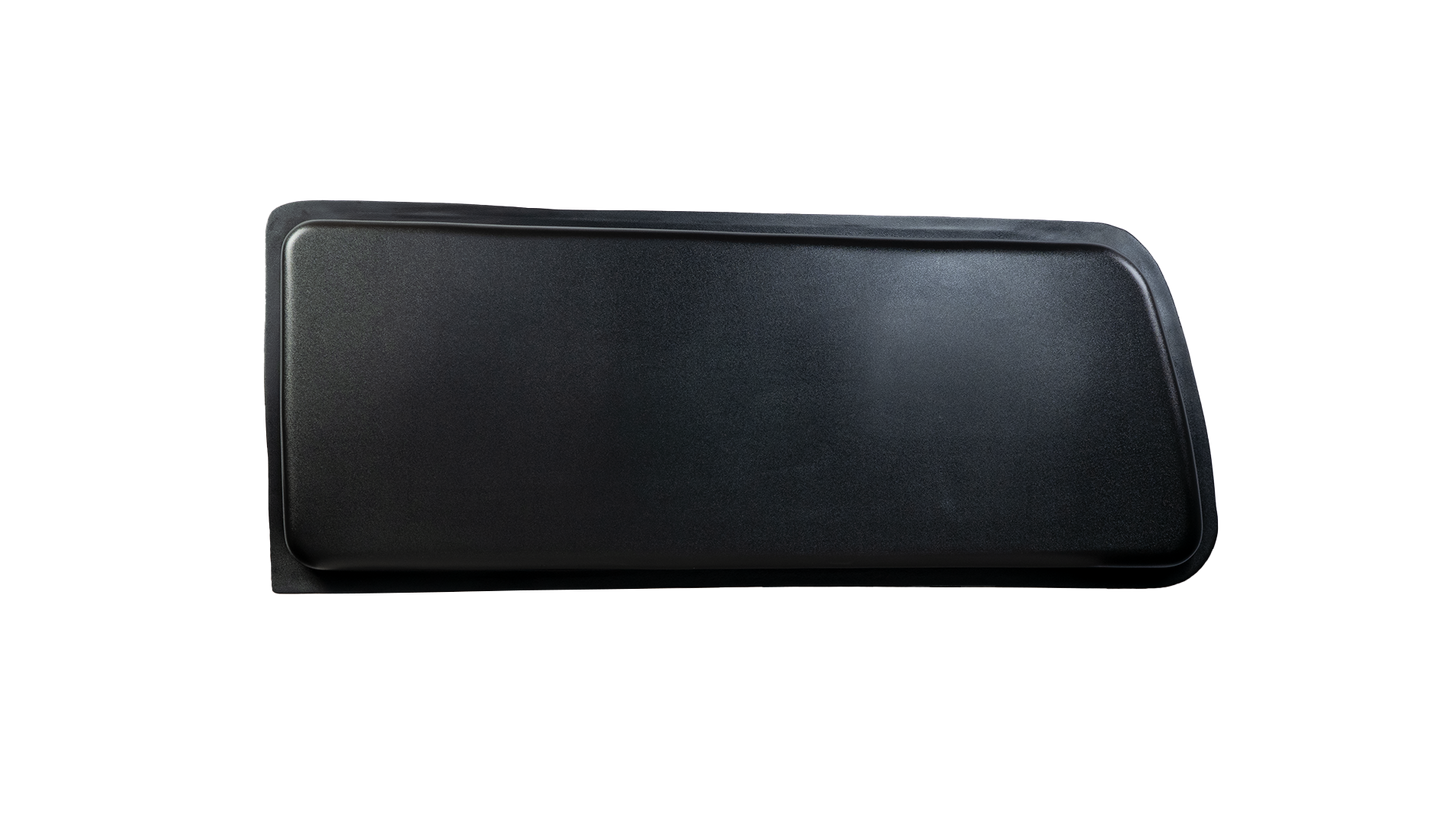

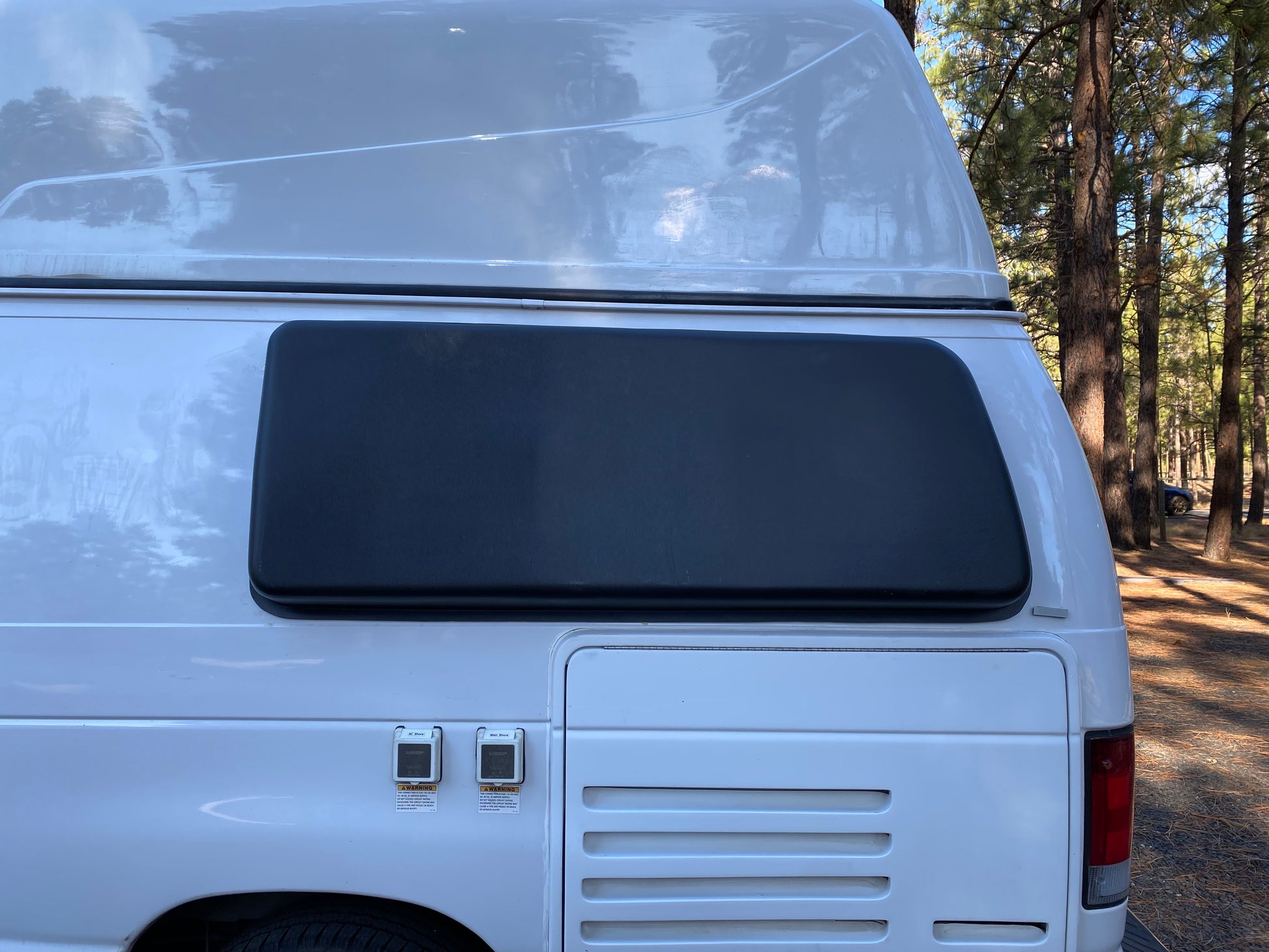

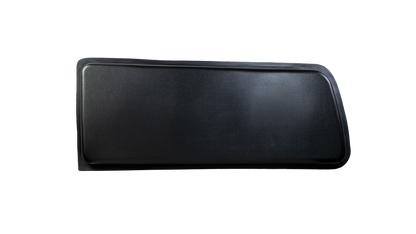

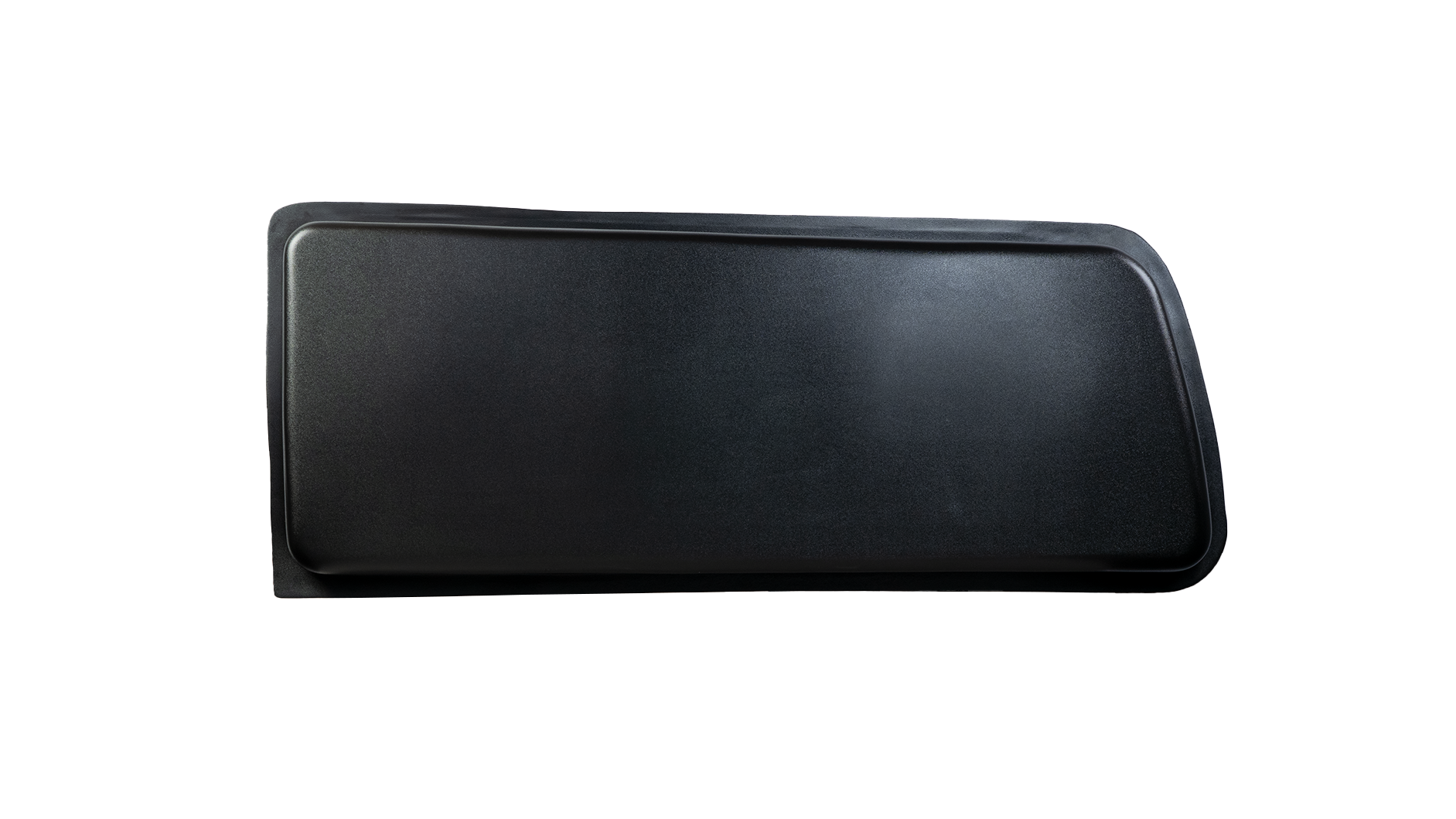

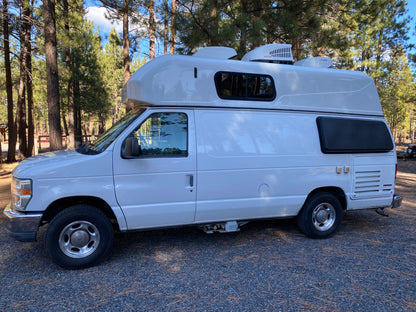

Ford E Series Van Flares

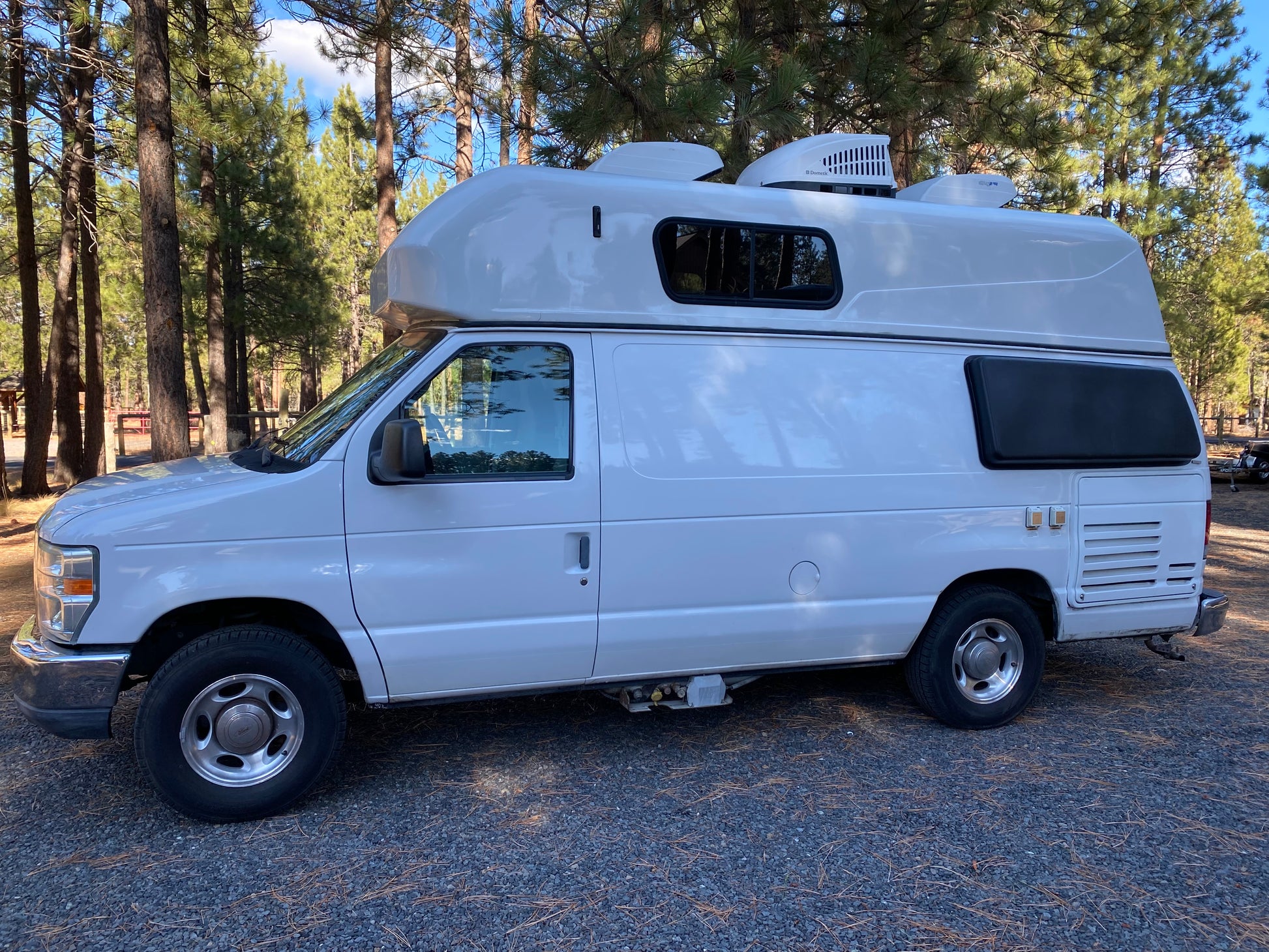

Why Your E350 Needs FlareSide

The E-Series was built tough, but not wide. Stock dimensions limit sideways sleeping and force diagonal or cramped bed layouts.

FlareSides solve that by adding crucial width where it matters:

• Gain up to 80" of sideways bed length (varies by build height & interior finishes)
• Keep all your floor space
• Unlock layout options usually reserved for Sprinters and Transits
• Increase comfort without losing the E350’s strength, torque, and compact footprint

Why Builders Love Them

• DIY-Friendly: Clean lines and intuitive mounting. Works with standard insulation and interior finishing methods.
• Durable TPO Construction: Flexible, impact-resistant, weather-proof, and significantly lighter than fiberglass.
• No-Maintenance Black Matte Finish:
  Rugged, modern, and built to hide dust, fingerprints, and light scuffs. Not paintable—designed to be used as-is.
• Perfect for Classic Rigs: Modern function without compromising the E350’s iconic look.

Window Options

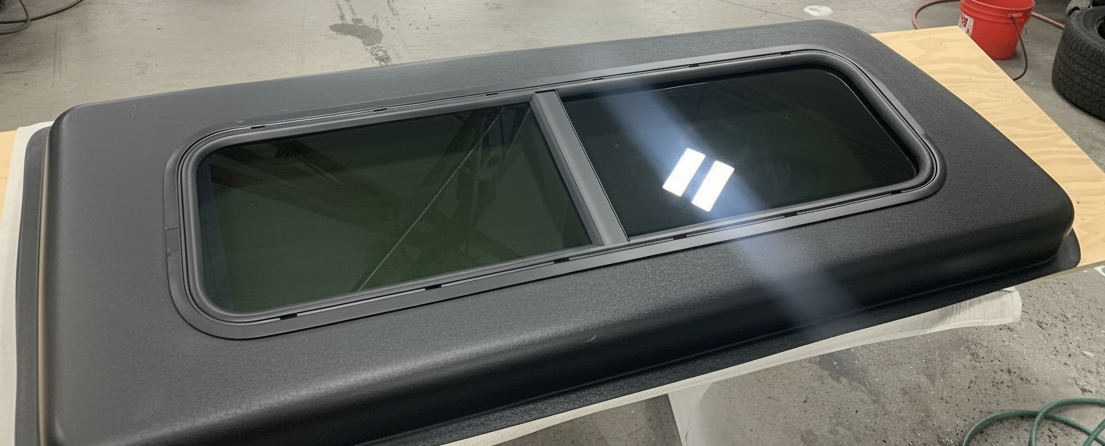

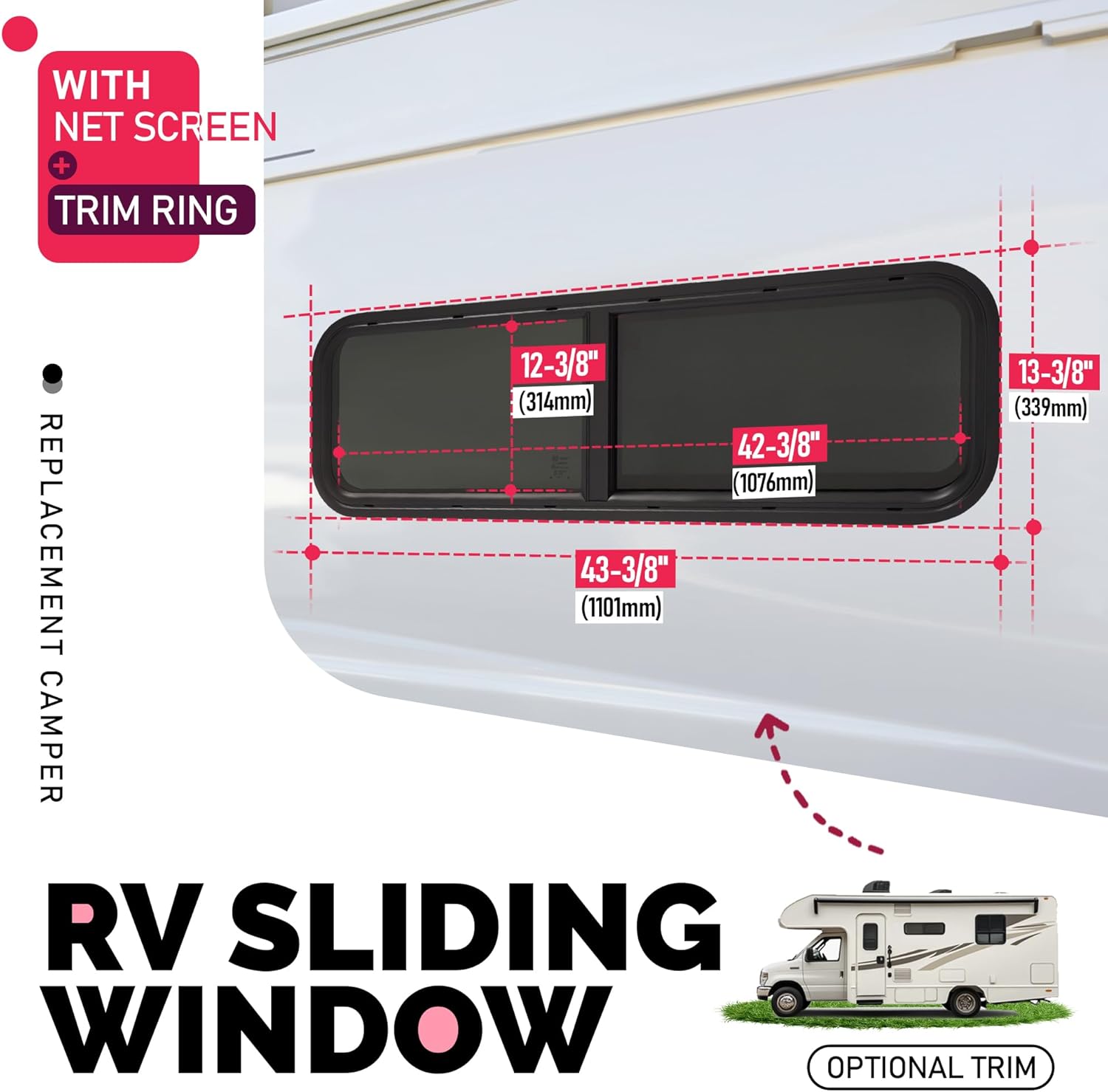

WUTIST Slider, produced by Scarman.

• A compact, horizontal‑slide RV window that brings in light and airflow with privacy.
• This 42” W x 12” H WUTIST window features tempered, tinted glass, a net screen, and a secure locking slider for ventilation without sacrificing privacy. Full frame size:42 3/8" x 13 3/8"
• The powder‑coated aluminum frame includes a trim ring and mounting hardware for straightforward screw‑in installation.

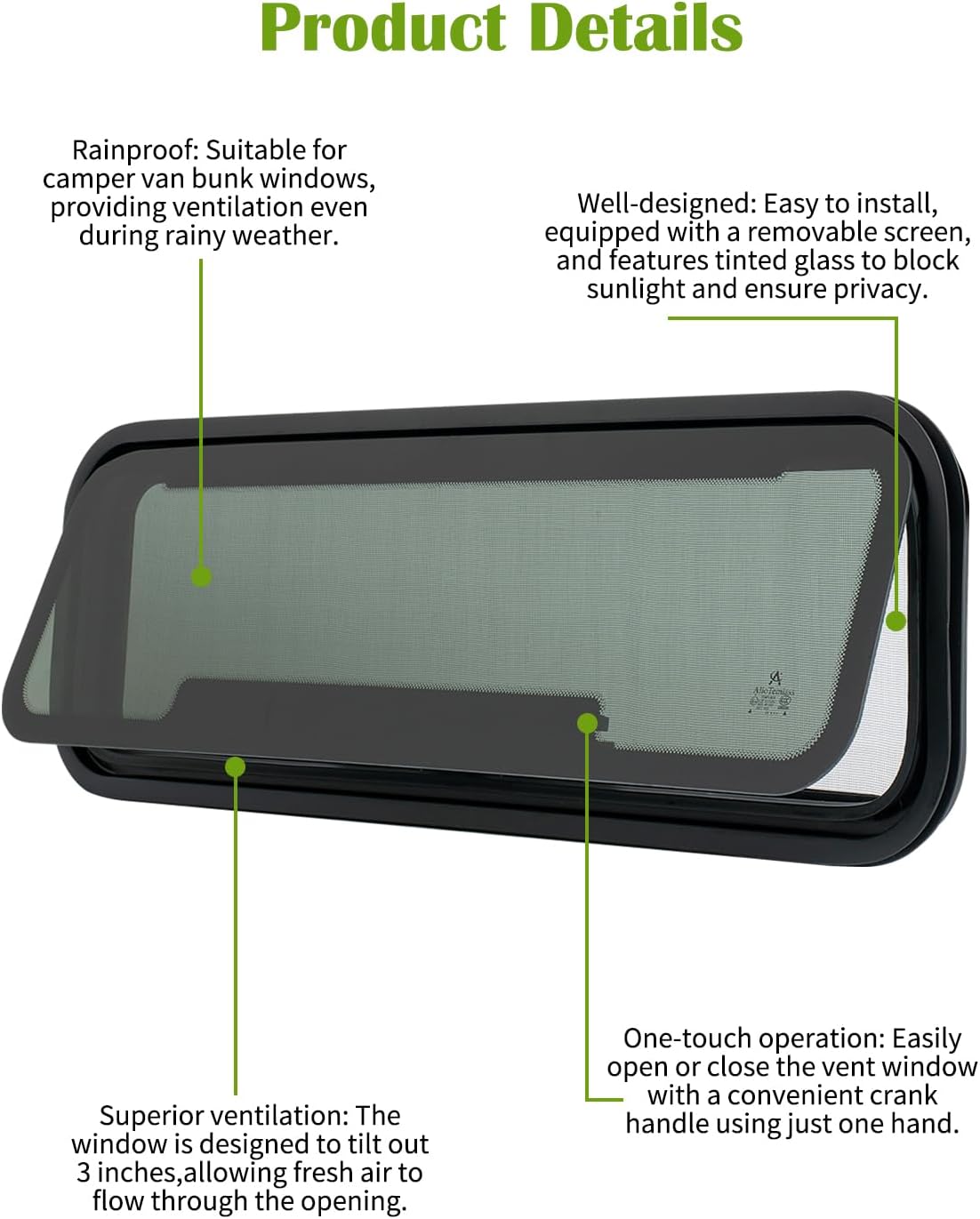

AlloTemlass Awning, produced by AlloTemlass

• Compact awning bunk window with crank-open ventilation and privacy glass.
• This 34” W x 11” H awning‑style RV ventilation window tilts out via a crank handle to bring airflow even in rain, while dark privacy tempered glass keeps interiors discreet. Frame of Window is 34.7" x 1.42.
• DOT and E‑mark certified glass and a powder‑coated aluminum frame provide durability.
• The frame includes a decorative trim ring, removable mesh screen, and a mounting template with screws for straightforward installation.

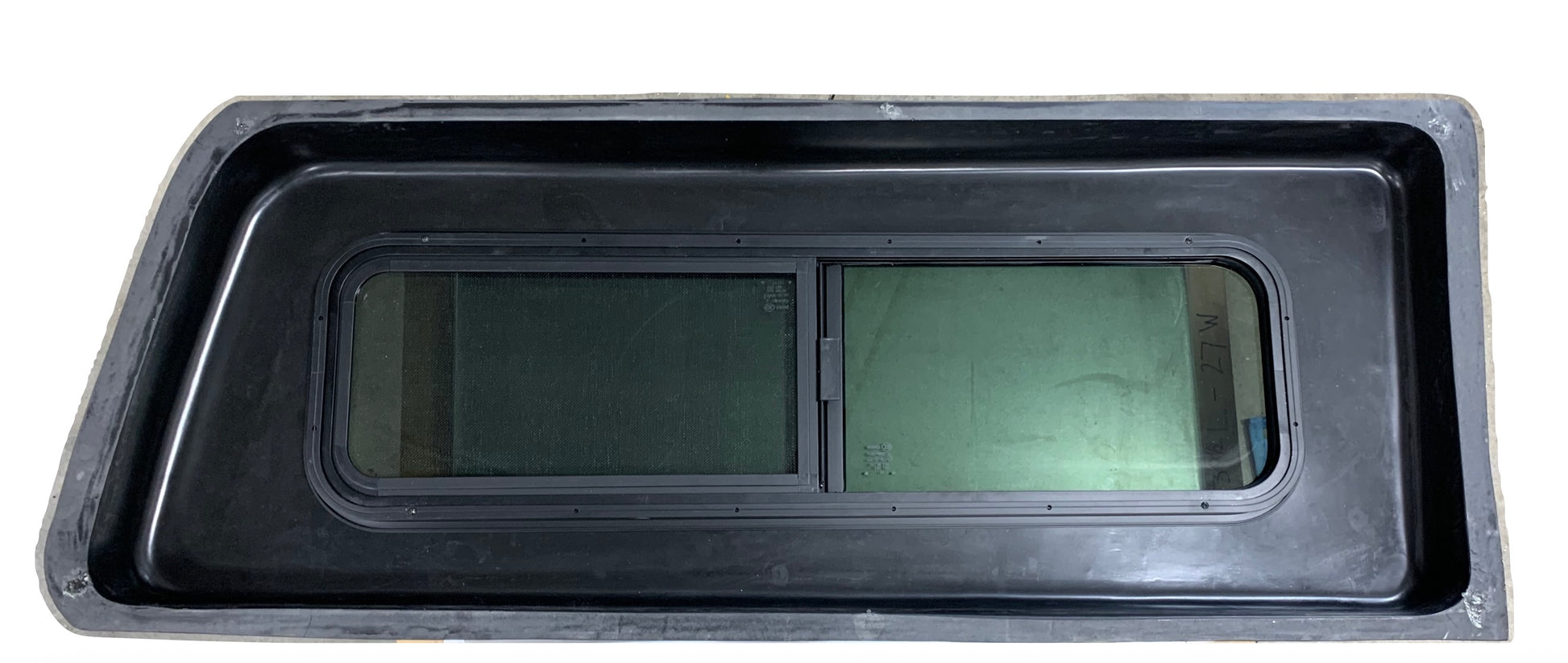

You can cut the window opening yourself for custom placement.

• Set the exact height and position that matches your interior layout.
• Compatible with our slider or awning window options.
• DIY freedom without being locked into a factory pre-cut location.

Fitment

• Ford E350 / E-Series
• Model Years: 1992–2014
• Works with standard body dimensions on high, medium, or standard roof builds.

Measurements

• Length: 54"
• Height: 18"
• Depth:

  • 3 3/4" or 95 mm (driver's side)

  • 3 3/8" or 86 mm (passenger side. Passenger side features a shallower flare depth to improve door clearance.)
• Sideways Bed Length After Install: ~78"
  (Actual usable width depends on bed height, insulation, trim, and window choice.)

Material

TPO (Thermoplastic Olefin)

• Lightweight
• Strong and flexible
• UV and weather-resistant
• Long-life durability
• Not paintable
  • Made from SEQUEL E3400 TPO—an extrusion‑grade material built for exterior panels—our flares combine rigidity and cold‑weather toughness. With a Shore D hardness of 65 and high impact performance (ductile at −30 °C / −22 °F), they resist cracking, hold shape in heat (HDT ~101 °C / 214 °F), and maintain dimensional stability for a clean, repeatable fit. The result: lightweight, durable flares that stand up to real‑world use.

What’s Included

• 1 Passenger-Side Flare
• 1 Driver-Side Flare
• 3 Tubes of Approved Adhesive
• Selected windows (if added)
• Printed installation instructions

Installation

Adhesive-bond installation.

Full installation guides and videos: coming soon

Shipping

• Ships from Oregon, USA
• Backorder lead time: 2-5 weeks currently
• Package weight: ~45 lbs
